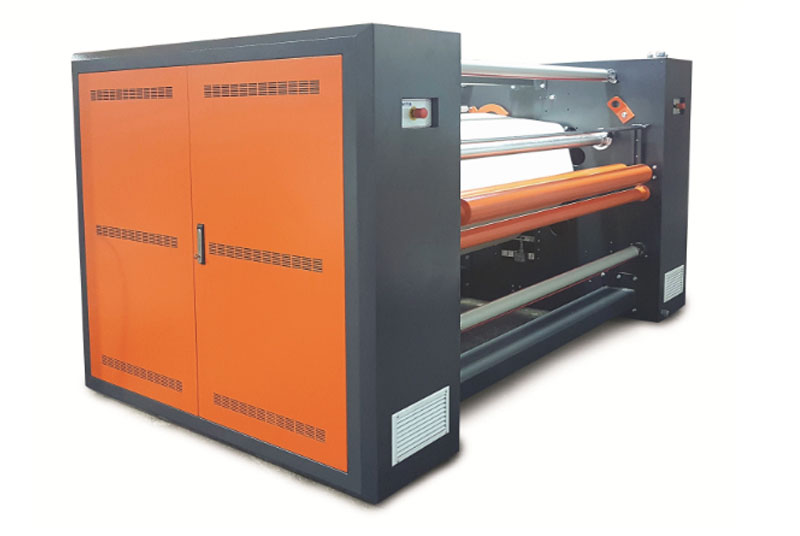

Model 600 Quantity Printing Machine
PRINTING WIDTH : 1800 MM
CALENDER CYLINDER DIAMETER : 600 MM
WE PRODUCE BETWEEN 120 CM AND 330 CM ACCORDING TO NEED.
ELECTRICAL POWER : 32 KW.
ELECTRICAL POWER IN A HOUR : 18 KW
HEATING SYSTEM : HEAT OIL (SURFACE HEAT DISTRIBUTION IS EQUALIZED.)
MACHINE CONTROL PANEL : 7 INCH LCD PLC SYSTEM
COOLING SYSTEM : AUTOMATIC
REISTANCE POWER : 30 KW
ENGINE POWER : 2.2 KW
HEATING TIME : 70 MINUTES
SEAL TENSIONING AND GUIDING SYSTEM : AUTOMATIC (PNEUMATIC CONTROLLINE LINEAR SLIDE)
CYLINDER HEAT CONTROL : OUTER SURFACE AND INTERIOR SURFACE DOUBLE AUTOMATIC CONTROLLED.
PRINT SPEED : 3-7 METERS IN MINUTES
FELT : NOMEX
